如何将EDI报文转换为CSV格式文件？

Published On: 2020年3月11日Categories: 帮助文档, 操作指南, 脚本和自动化, 解决方案Views: 1

如果您对EDI项目实施有一定的了解，想必您一定知道，在正式开始EDI项目实施之前，都会有EDI顾问与您接洽，沟通EDI项目需求。其中，会包含EDI通信双方使用哪种传输协议，传输的报文是符合什么标准的，传输的业务报文都包含哪些种类，标准的EDI报文转换成什么格式，是否与企业现有业务系统集成。以上问题，在项目需求沟通初期都务必要确认清楚。

以上，我们提到标准的EDI报文转换成什么格式，这一问题其实也是很多客户在项目实施中比较纠结的一点。实际上，这主要取决于您企业的信息化情况。通常，企业如已有业务系统，为了实现数据自动化处理，都会选择与现有的业务系统集成，支持的方式有很多，比如金蝶、用友可以通过数据库表方式与EDI系统集成，某客户的物流管理系统选择API方式与EDI系统集成，诸如此类。当然，也存在部分客户没有业务系统的情况，那EDI数据转换成什么格式才方便业务人员读取、操作呢？

本文以X12 830报文转换为CSV格式文件为例，从收到X12 830报文开始，依次按照系统处理顺序，介绍如何使用知行EDI系统将X12 830报文转换为CSV格式。实际上，CSV这种方案不只是适用于没有业务系统的企业，有的业务系统也是支持直接导入CSV格式文件的，同样也适用CSV方案。

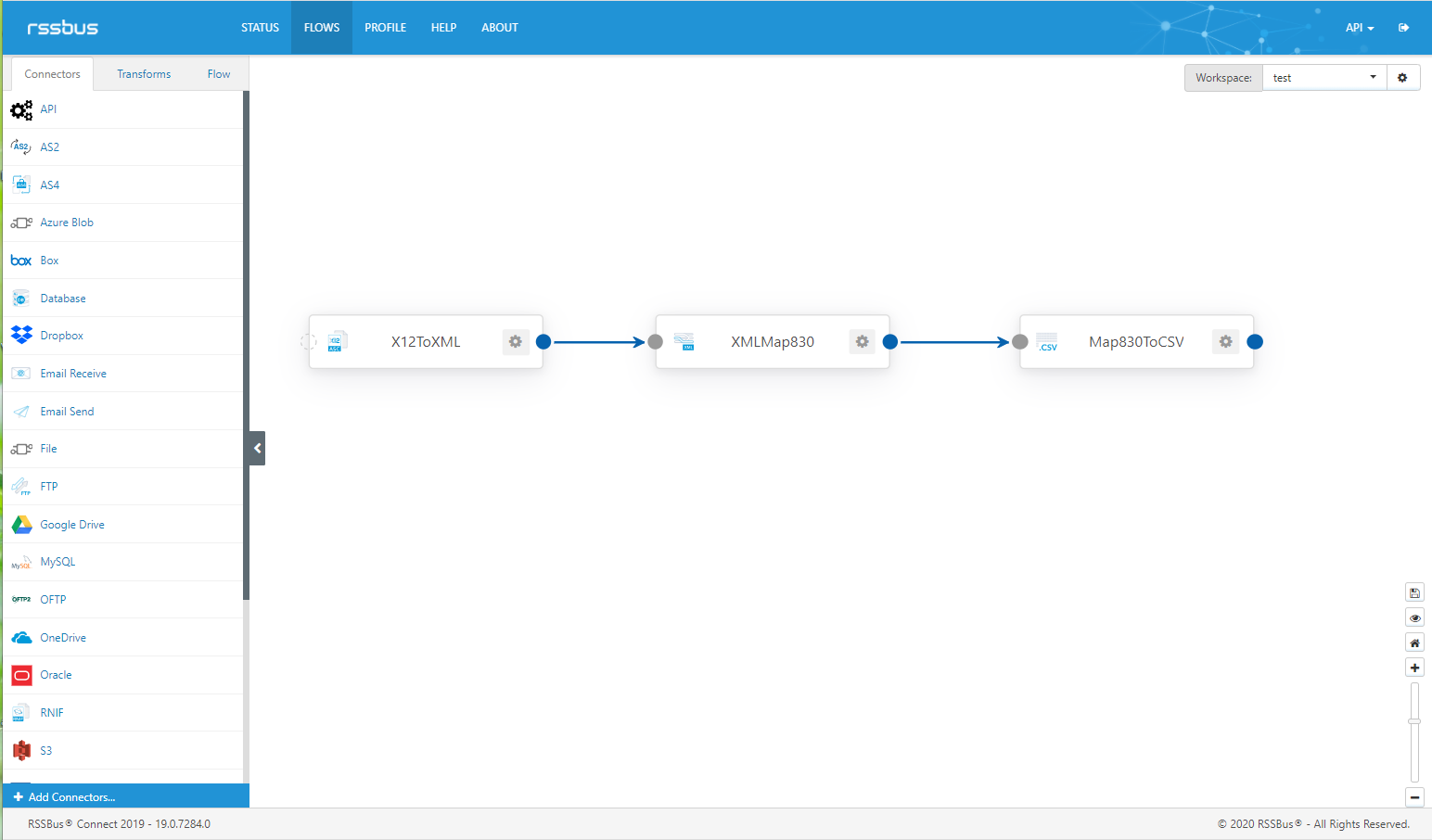

以下，是一个完整的X12 830报文转换为CSV格式的工作流。其中，经由3个端口处理，最终解析得到CSV格式的830文件。

X12ToXML端口

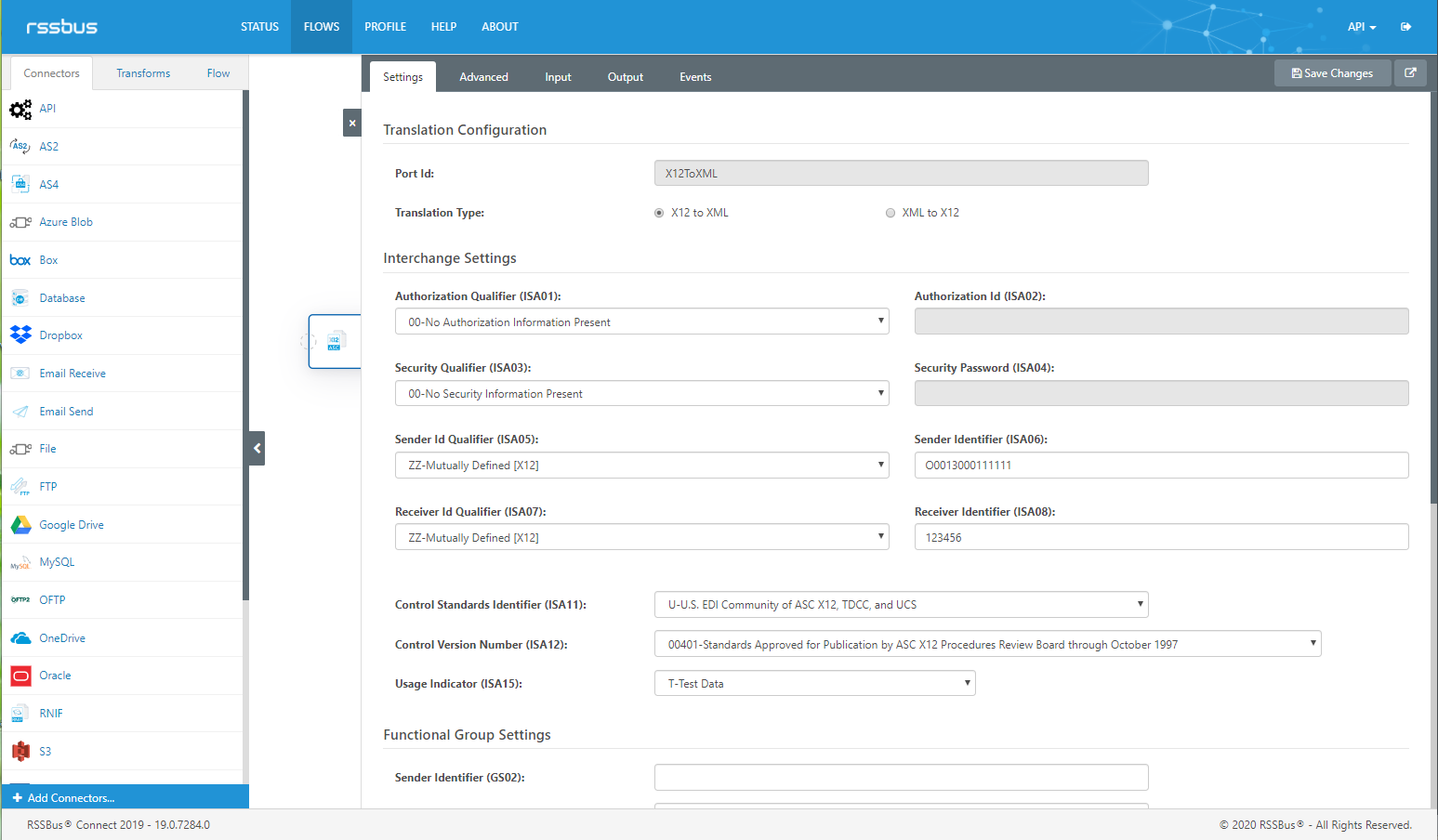

首先，配置X12端口转换类型(Translation Type)为X12 to XML，用于将X12标准报文转换为XML格式。此外，还要配置Sender Id Qualifier及Sender Identifier等信息。

配置完后，在Input界面上传需要转换为CSV格式的X12 830报文。

ISA*00*          *00*          *ZZ*O0013000111111 *ZZ*123456         *200227*0700*U*00200*000000045*0*P*>
GS*PS*O00130001111*123456*20200227*0700*000000045*X*004010
ST*830*450001
BFR*05**21*DL*A*20200217**20200227
N1*MI
PER*SC**TE*123456788
N1*ST*ABC*92*1100
N1*SU*CAB Automotive
LIN*00020*BP*12AB4356*PO*1234546543
UIT*PC
PID*F****HOUSING-TEST
FST*4032*C*D*20200217*20200217
FST*6048*C*D*20200224*20200224
SHP*01*6048*050*20200210
SHP*02*75456*050*20200210
CTT*1
SE*15*450001
GE*1*000000045
IEA*1*000000045

系统默认已开启自动处理，当前X12ToXML端口会自动将X12 830报文转换为XML格式。在Output页面中可以下载并查看。



00

        00

        ZZ
        O0013000111111
        ZZ
        123456
        200227
        0700
        U
        00200
        000000045
        0
        P
        >





PS
            O00130001111
            123456
            20200227
            0700
            000000045
            X
            004010






830
                    450001


                    05

                    21
                    DL
                    A
                    20200217

                    20200227



                        MI


                        SC

                        TE
                        123456788




                        ST
                        ABC
                        92
                        1100




                        SU
                        CAB Automotive




                        00020
                        BP
                        12AB4356
                        PO
                        1234546543



                            PC



                        F



                        HOUSING-TEST



                            4032
                            C
                            D
                            20200217
                            20200217




                            6048
                            C
                            D
                            20200224
                            20200224




                            01
                            6048
                            050
                            20200210




                            02
                            75456
                            050
                            20200210




                    1

XMlMap830端口

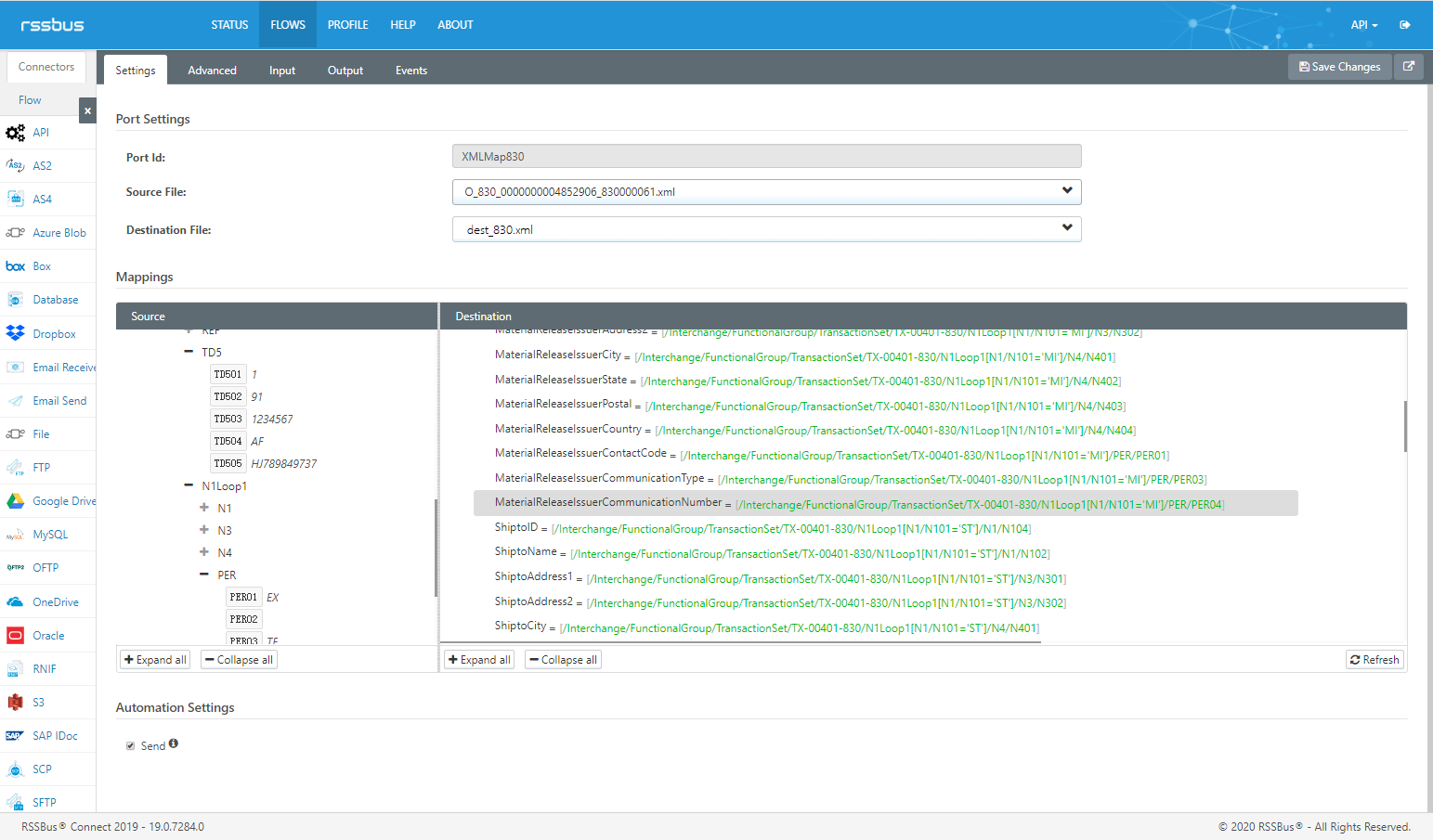

经由X12ToXML端口端口处理后，得到以上XML格式文件。接下来，通过XMlMap830端口处理可以将原本多层复杂结构的知行EDI系统默认XML格式文件转换为单层结构的XML文件。与上一步X12转换为XML不同的是，XMlMap830端口是需要通过界面操作拖拽完成数据关系映射来完成。

转化后，得到以下单层结构的XML格式文件，以便后续CSV端口处理。



  <_830>

    21
    DL
    A
    20200217
    20200227














    SC
    TE
    123456788
    1100
    ABC










    CAB Automotive









    00020
    12AB4356
    HOUSING-TEST

    1234546543
    PC









    4032
    C
    D
    20200217
    20200217

    6048


    20200210





  <_830>

    21
    DL
    A
    20200217
    20200227














    SC
    TE
    123456788
    1100
    ABC










    CAB Automotive









    00020
    12AB4356
    HOUSING-TEST

    1234546543
    PC









    6048
    C
    D
    20200224
    20200224

    6048


    20200210

XMlMap830端口

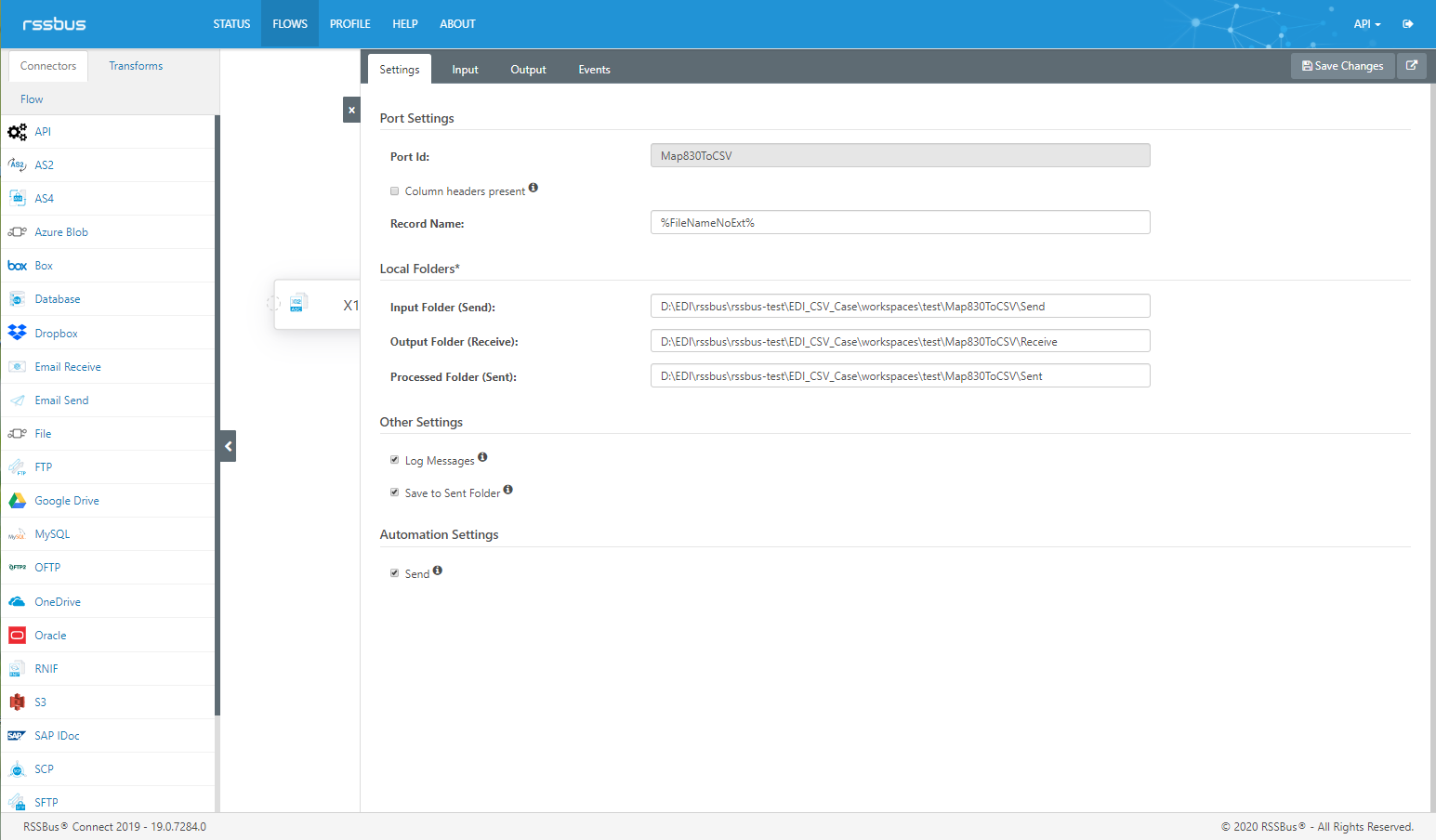

最后一步，通过CSV端口就可以将XML格式的文件转换为CSV格式。无需代码，使用端口现有功能即可快速将XML格式转换为CSV格式文件。

"ForecastNo","ReleaseNo","ScheduleType","ScheduleQtyType","StartDate","ForecastCreateDate","NotesID","Notes","RoutingSequenceCode","CarrierCode","TransportMethodCode","RoutingInformation","MaterialReleaseIssuerID","MaterialReleaseIssuerName","MaterialReleaseIssuerAddress1","MaterialReleaseIssuerAddress2","MaterialReleaseIssuerCity","MaterialReleaseIssuerState","MaterialReleaseIssuerPostal","MaterialReleaseIssuerCountry","MaterialReleaseIssuerContactCode","MaterialReleaseIssuerCommunicationType","MaterialReleaseIssuerCommunicationNumber","ShiptoID","ShiptoName","ShiptoAddress1","ShiptoAddress2","ShiptoCity","ShiptoState","ShiptoPostal","ShiptoCountry","ShiptoContactCode","ShiptoCommunicationType","ShiptoCommunicationNumber","SupplierID","SupplierName","SupplierAddress1","SupplierAddress2","SupplierCity","SupplierState","SupplierPostal","SupplierCountry","SupplierContactCode","SupplierCommunicationType","SupplierCommunicationNumber","POLineNumber","BuyerPartNumber","PartDescription","PartRevisionLevel","PONumber","Unit","UnitPrice","ExpeditorName","ExpeditorTel","MaterialSchedulerName","MaterialSchedulerTel","ResourceAuthorizationCode","AuthorizationThroughDate","AuthorizationCumulatedQuantity","CumulativeStartDate","Quantity","ForecastCode","ForecastTime","ScheduleStartDate","ScheduleEndDate","ForecastReferenceNumber","LastReceivedQty","CumulativeQtyReceived","CumulativeScrapQtyReceived","LastReceivedDate","CumulativeQtyReceivedStartDate","CumulativeQtyReceivedEndDate","CumulativeScrapQtyReceivedStartDate","CumulativeScrapQtyReceivedEndDate"
"","21","DL","A","20200217","20200227","","","","","","","","","","","","","","","SC","TE","123456788","1100","ABC","","","","","","","","","","","CAB Automotive","","","","","","","","","","00020","12AB4356","HOUSING-TEST","","1234546543","PC","","","","","","","","","","4032","C","D","20200217","20200217","","6048","","","20200210","","","",""
"","21","DL","A","20200217","20200227","","","","","","","","","","","","","","","SC","TE","123456788","1100","ABC","","","","","","","","","","","CAB Automotive","","","","","","","","","","00020","12AB4356","HOUSING-TEST","","1234546543","PC","","","","","","","","","","6048","C","D","20200224","20200224","","6048","","","20200210","","","",""

经过以上3个端口的一次处理，原本生涩难懂的X12 830报文已经转为了CSV格式。不论是直接导入现有业务系统或是直接打开查看，您就能轻松地读取到重要的业务信息。现在就下载知行EDI系统，免费试用30天。继续关注知行软件，了解更多EDI系统功能及配置方法，帮您快速上手，搞定EDI项目。
